PRESS supports designing press dies. It has three key capabilities: design support, modeling support, and post-process support.

3DMODEL-CHECKER

3DMODEL-CHECKER

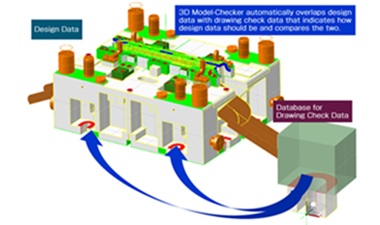

3DMODEL-CHECKER automatically enables quantitative adjudication on data measurement and specification confirmation. 3DMODEL-CHECKER makes it easier to check data of 3D die/mold drawings.

CAE-PRESS

CAE-PRESS

This module is for a stress analysis which enables seamless operations between CAD and CAE for designers. Designers can perform stress analyses through simple input CAD operation without being concerned with CAE.

PRESS-SIM

PRESS-SIM

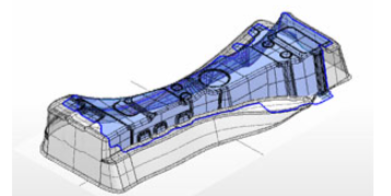

This is a simple simulation capability for shaping a press die. This enables a quick understanding of ’Blank Deployment Lines’ and ’Flange Deployment Lines (Trim Deployment Lines)’ that will help quotations at the initial stage of designing.

DIE LAYOUT

DIE LAYOUT

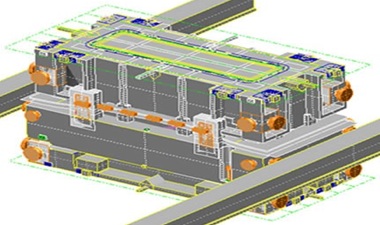

DL enables three-dimensional supports. It is used for the design stage for improving quality of DL design

FORM-EX

FORM-EX

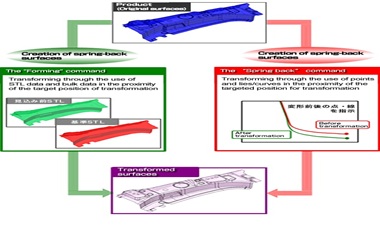

This enables quick and precise modeling in order to help users shorten the delivery time. It can form and model by taking into consideration the characteristics of press die forming, empty-weight deflection (that is needed for confirming interference against die parts when transferring panels), material characteristics, and STL figures.

PRESS-FORM-PLUS-II

PRESS-FORM-PLUS-II

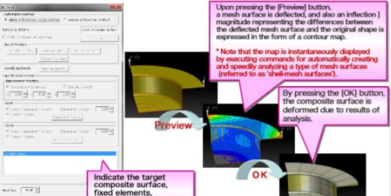

PRESS-FORM-PLUS-II enables direct references to the results of simulation analyses of sheet metal forming (in the form of NASTRAN format file) in order to improve the preciseness of forming at the initial stage.

DRAW-DIE-EX

DRAW-DIE-EX

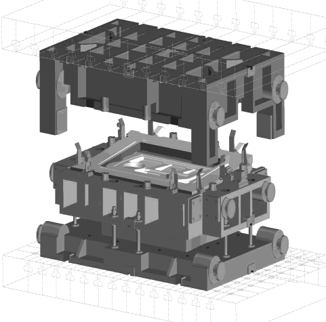

DRAW-DIE-EX can shorten a designing phase through the use of Dynamic Navigator, navigation tool, regardless of the skills of individual users.

PRESS-MOTION

PRESS-MOTION

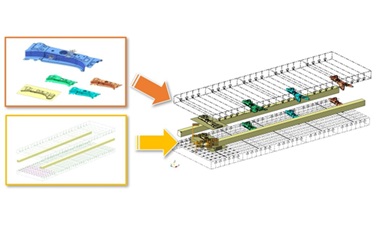

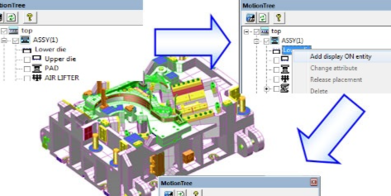

PRESS-MOTION enables designers to analyze transfer lines through simple operations.

 CADmeister-LITE for PRESS DIE

CADmeister-LITE for PRESS DIE

This is a tool for confirming the attribute data that have been assigned to 3D CAD data (such as the information of materials and unit prices).
